Product Description
| Model G530 |
| Feature |
| Print Method Thermal Transfer / Direct Thermal |
| Resolution 300 dpi (12 dots/mm) |
| Print Speed 4IPS (102 mm/s) |
| Print Width 4.16″ (105.7 mm) |
| Print Length Min. 0.16” (4 mm)**; Max. 30” (762 mm) |
| Memory 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Sensor Type Adjustable reflective sensor. Fixed transmissive sensor, central aligned |
| Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. – 0.01” (0.25 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1”, 1.5”, 3″ (25.4 mm, 38.1 mm, 76.2 mm) |
| Ribbon
Types: Wax, wax/resin, resin |
| Printer Language EZPL, GEPL, GZPL auto switch |
| Software Label design software: QLabel-IV (for EZPL only), GoLabel (for EZPL only) Driver: Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008 DLL: Windows 2000, XP and Vista |
| Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable |
| Barcodes 1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code |
| Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16) |
| Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces USB + Parallel Port USB + Serial Port + Ethernet |
| Control Panel Two bi-color status-LEDs: Ready, Status Control key: FEED |
| Power Auto Switching 100-240VAC, 50-60Hz |
| Environment Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals CE(EMC), FCC Class A, CB, cUL, CCC |

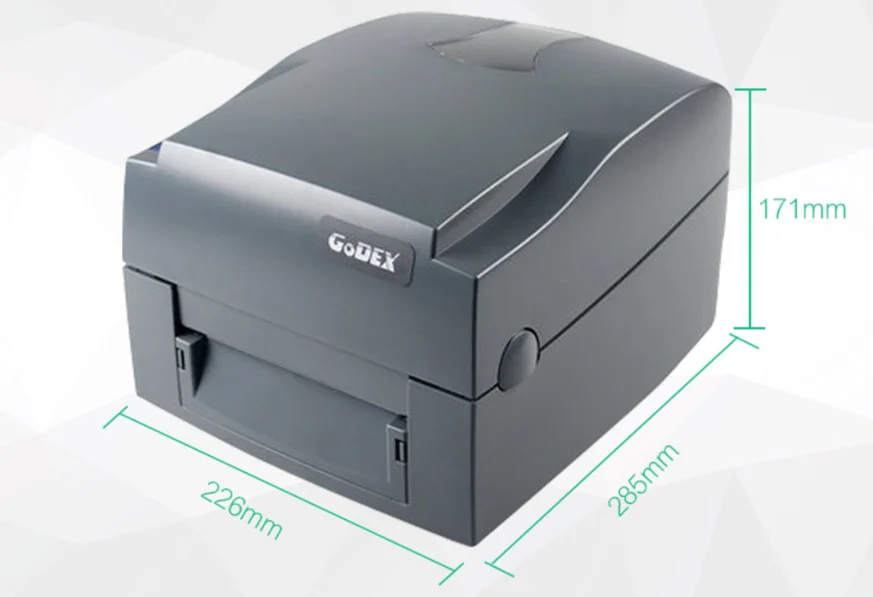

| Dimension Length: 11.2” (285 mm) Height: 6.8” (171 mm) Width: 8.9” (226 mm) |
| Weight 6 lbs (2.72Kg) ,excluding consumables |
| Options Cutter Module Label Dispenser External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
| *Specifications are subject to change without notice. All company and or product names are trademarks and or registered trademarks of their respective owners.
** Minimum print height specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. Godex is pleased to test non-standard materials for minimum height printing capability. |
